DPC collects data directly from your SMT placement machines as well as MVP's Automated Optical Inspection machines, providing the realtime information required by both Operators and Management to control line utilisation, quality and material consumption.

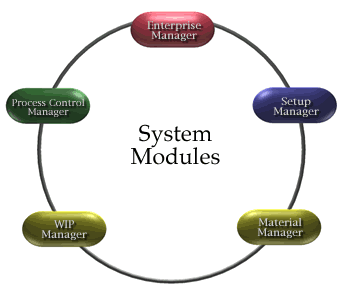

The functionality is provided in modular form, allowing you to choose only those features that you will use but offering the ability to expand later as your needs grow.
On heterogeneous production lines, its cross-platform nature means all data can be stored and viewed using a single toolset, instead of through several vendors proprietary tools. Operators require only to learn a single interface for setup verification and only a single link to local Material Management or Factory Information System is needed.
DPC uses off-the shelf hardware including Wi-Fi scanners and a standardised software platform of Microsoft Windows operating system and SQL Server database engine.
You may use DPC's own Enterprise Manager tool to analyse the collected data and generate reports or utilise standard ODBC links with the well documented database to produce your own reports or create links with your other factory systems.
Currently Supported Equipment
- IPC CAMX Compliant Equipment.
- SECS-II/GEM Compliant Equipment.
- Proprietary Equipment Interface Emulation (as required).
- Assemblèon:
- FCM, FCM-II, CAMX Platforms (AX201, AX301, AX501, AX3, AX5, etc).
- ASM (SIPLACE):
-
SIPLACE S15, S20, S23, S25HM, S27HM, F3, F4, F5, F5HM, HS50, HS60, HF, HF3, CS, CF, D, SX & X Series.
- SIPLACE Line Computer SCO UNIX or Linux.
- SIPLACE Pro V1.4, 2.0, 2.1, 3.0 & 3.1, 5.x, 8.x, 9.x, 10.x, 11.x, 14.x, 15.x.
-
- Fuji:
- Flexa Controller Platform (NXT Series, QP Series, etc).
- Machine Vision Products:
- AutoInspectors, AutoGuides (32-bit and 64-bit Linux Platforms).
- Rehm Reflow Ovens.
- Universal Instruments Corporation:
- GSM / Genesis / AdVantis (UPS & UPS+).
- Operating Systems:
- Windows 2000/2003/2008/2012 Server.
- Windows XP, Vista, 7, 8, 10 Professional.
- Databases:
- Microsoft SQL Server 2008 and above for full DPC MES product (Windows database engine).
- MySQL 5.0.95 and above for MVP AOI specific DPC Lite product (Linux database engine).
